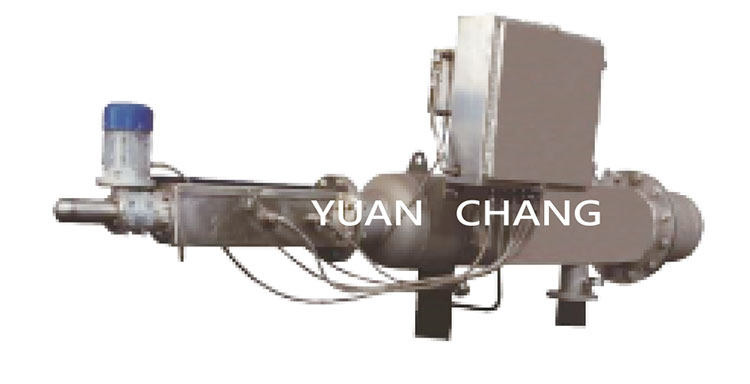

Intelligent Differential Pressure Precision Filter FA Series (self-suction)

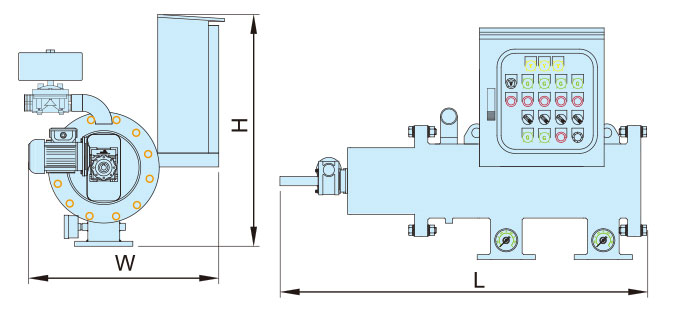

Machine outline diagram
Standard specifications (Contact for customized)
FA Series
Spec. |
Model | ||||
|---|---|---|---|---|---|
| FA-15 | FA-30 | FA-45 | FA-60 | ||
| Maximum fresh water load (m³/hr) | 80 | 150 | 250 | 400 | |
| Filter area (cm2) | 1500 | 3000 | 4500 | 6000 | |
| Filter aperture (um) | 10~800 | ||||
| Power usage (HP) | 1/4 | 1/4 | 1/4 | 1/2 | |
| Machine material | Standard | Stainless steel SUS304 | |||
| Optional | Stainless steel SUS316、Other special materials | ||||
| Reference dimensions(mm) | L | 1400 | 1750 | 1950 | 2200 |
| W | 710 | 740 | 780 | 900 | |
| H | 790 | 820 | 900 | 930 | |
| Reference weight (kgs) | 170 | 220 | 290 | 380 | |
