TM3 Membrane Plate Fully Automatic Type (External Front Cleaning Filter Cloth) Series

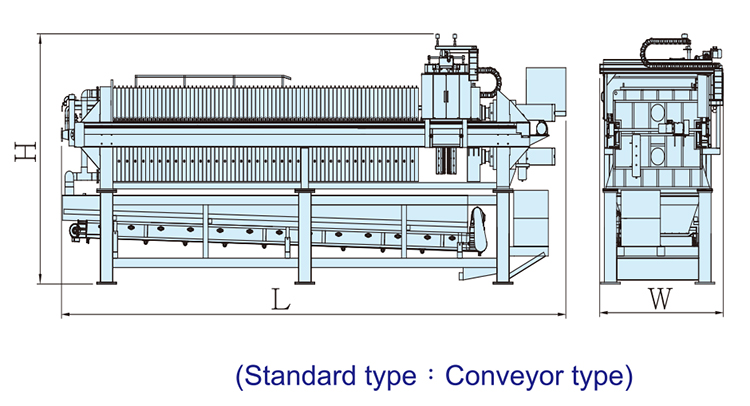

Machine outline diagram
Standard specifications (Contact for customized)
Patent certificate number: new M584218
| Model | Filter plate size & quantity (Chamber + Membrane plate type) （mm／piece） | Filter area (M2) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension
(Conveyor type)
(Not included base frame height)
LxWxH (mm) |
Reference weight
(kgs) |
|---|---|---|---|---|---|
| TM3-80-21P | 800 x 21 | 18.2 | 285 | 4630x1750x3000 | 3360 |
| -31P | x 31 | 27.3 | 428 | 5250x1750x3000 | 3850 |
| -41P | x 41 | 36.4 | 570 | 6000x1750x3000 | 4350 |
| -51P | x 51 | 45.5 | 713 | 6630x1750x3000 | 4850 |
| TM3-100-31P | 1000 x 31 | 43.2 | 666 | 5730x2050x3100 | 5700 |
| -41P | x 41 | 57.6 | 888 | 6560x2050x3100 | 6460 |
| -51P | x 51 | 72.0 | 1110 | 7270x2050x3100 | 7200 |
| -61P | x 61 | 86.4 | 1332 | 8320x2050x3100 | 7960 |
| TM3-120-41P | 1200 x 41 | 89.6 | 1311 | 6900x2560x3800 | 9900 |
| -51P | x 51 | 112.0 | 1639 | 7640x2560x3800 | 11850 |
| -61P | x 61 | 134.4 | 1967 | 8380x2560x3800 | 13800 |
| -71P | x 71 | 156.8 | 2294 | 9100x2560x3800 | 15780 |
| TM3-150-41P | 1500 x 41 | 144.0 | 2394 | 7370x2750x4200 | 15220 |
| -51P | x 51 | 180.0 | 2993 | 8190x2750x4200 | 16800 |
| -61P | x 61 | 216.0 | 3591 | 9040x2750x4200 | 18330 |
| -71P | x 71 | 252.0 | 4190 | 9860x2750x4200 | 19970 |
| TM3-200-51P | 2000 x 51 | 340.0 | 5795 | 9600x3400x4700 | 37540 |
| -61P | x 61 | 408.0 | 6594 | 10520x3400x4700 | 40570 |
| -71P | x 71 | 476.0 | 8113 | 11520x3400x4700 | 43600 |
| -81P | x 81 | 544.0 | 9272 | 12440x3400x4700 | 46680 |
|
Remarks:
* Same as TC3 fully-automatic type |
