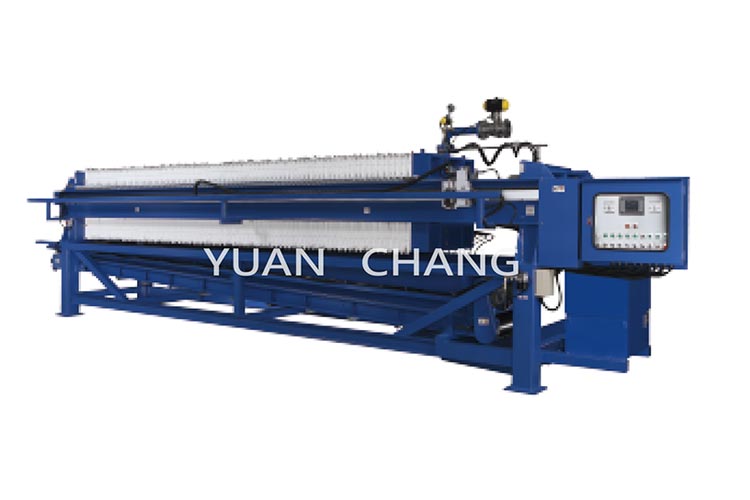

TM2A Membrane Plate Automatic Type (Plate-open one by one) (Can be upgraded to fully automatic mode) Series

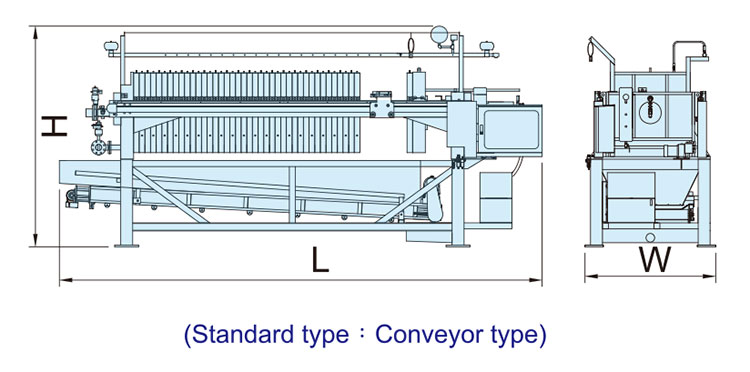

Machine outline diagram
Standard specifications (Contact for customized)
| Model | Filter plate size & quantity (Chamber + Membrane plate type) （mm／piece） | Filter area (M2) |
Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension
(Conveyor type)
(Not included base frame height)
L x W x H (mm) |
Reference
weight
(kgs) |
|---|---|---|---|---|---|
| TM2-63-31A | 630 x 31 | 18.0 | 231 | 4610x1260x2460 | 2160 |
| -41A | x 41 | 24.0 | 308 | 5240x1260x2460 | 2470 |
| -51A | x 51 | 30.0 | 385 | 5870x1260x2460 | 2780 |
| TM2-80-31A | 800x 31 | 27.3 | 428 | 4850x1480x2800 | 3400 |
| -41A | x 41 | 36.4 | 570 | 5530x1480x2800 | 4070 |
| -51A | x 51 | 45.5 | 713 | 6200x1480x2800 | 4740 |
| TM2-100-41A | 1000 x 41 | 57.6 | 888 | 6110x1830x2820 | 5200 |
| -51A | x 51 | 72.0 | 1110 | 6870x1830x2820 | 5720 |
| -61A | x 61 | 86.4 | 1332 | 8070x1830x2820 | 6250 |
| -71A | x 71 | 100.8 | 1554 | 8880x1830x2820 | 6880 |
| TM2-120-41A | 1200 x 41 | 89.6 | 1311 | 6470x2350x3500 | 9000 |
| -51A | x 51 | 112.0 | 1639 | 7250x2350x3500 | 10050 |
| -61A | x 61 | 134.4 | 1967 | 8230x2350x3500 | 11100 |
| -71A | x 71 | 156.8 | 2294 | 9010x2350x3500 | 12300 |
| TM2-150-51A | 1500 x 51 | 180.0 | 2993 | 8020x2620x4000 | 16030 |
| -61A | x 61 | 216.0 | 3591 | 8900x2620x4000 | 17690 |
| -71A | x 71 | 252.0 | 4190 | 9770x2620x4000 | 19240 |
| -81A | x 81 | 288.0 | 4788 | 10650x2620x4000 | 20800 |
| TM2-200-51A | 2000 x 51 | 340.0 | 5795 | 9270x3250x4500 | 36540 |
| -61A | x 61 | 408.0 | 6954 | 10220x3250x4500 | 39570 |
| -71A | x 71 | 476.0 | 8113 | 11170x3250x4500 | 42600 |
| -81A | x 81 | 544.0 | 9272 | 12120x3250x4500 | 44880 |
Remarks：
|
