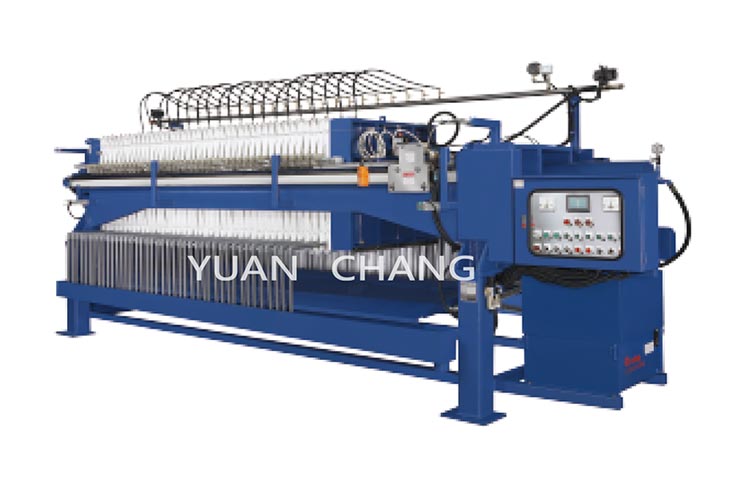

TM2B Membrane Plate Automatic Type (Segmented Fast opening) Series

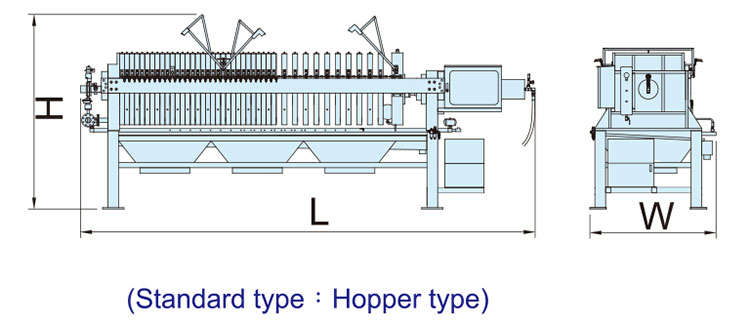

Machine outline diagram
Standard specifications (Contact for customized)
| Model | Filter plate size & quantity (Chamber + Membrane plate type) （mm／piece） | Filter area (M2) | Treating capacity
(Sludge cake volume) (Liter／Lot) |
Ref. Machine dimension
(Conveyor type)
(Not included base frame height)
L x W x H (mm) |
Reference weight
(kgs) |
|---|---|---|---|---|---|
| TM2-80-41B5 | 800 x 41 | 36.4 | 570 | 5880x1480x2800 | 4100 |
| -51B7 | x 51 | 45.5 | 713 | 6500x1480x2800 | 4590 |
| -61B8 | x 61 | 54.6 | 855 | 7150x1480x2800 | 5080 |
| TM2-100-41B7 | 1000 x 41 | 57.6 | 888 | 6130x1830x2820 | 5890 |
| -51B9 | x 51 | 72.0 | 1110 | 6890x1830x2820 | 6600 |
| -61B10 | x 61 | 86.4 | 1332 | 7960x1830x2820 | 7250 |
| -71B12 | x 71 | 100.8 | 1554 | 8670x1830x2820 | 7950 |
| TM2-120-41B8 | 1200 x 41 | 89.6 | 1311 | 6490x2350x3500 | 9300 |
| -51B10 | x 51 | 112.0 | 1639 | 7270x2350x3500 | 10260 |
| -61B12 | x 61 | 134.4 | 1967 | 8220x2350x3500 | 11230 |
| -71B14 | x 71 | 156.8 | 2294 | 8950x2350x3500 | 12180 |
| TM2-150-41B10 | 1500 x 41 | 144.0 | 2394 | 7070x2620x4000 | 14520 |
| -51B13 | x 51 | 180.0 | 2993 | 7890x2620x4000 | 16030 |
| -61B15 | x 61 | 216.0 | 3591 | 8740x2620x4000 | 17690 |
| -71B18 | x 71 | 252.0 | 4190 | 9560x2620x4000 | 19240 |
| -81B20 | x 81 | 288.0 | 4788 | 10410x2620x4000 | 20900 |
Remarks：
|
